Shanding 2024 Электричество
Описание

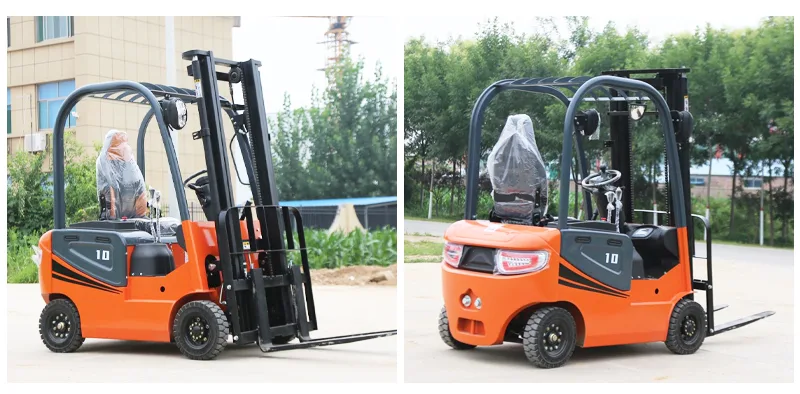

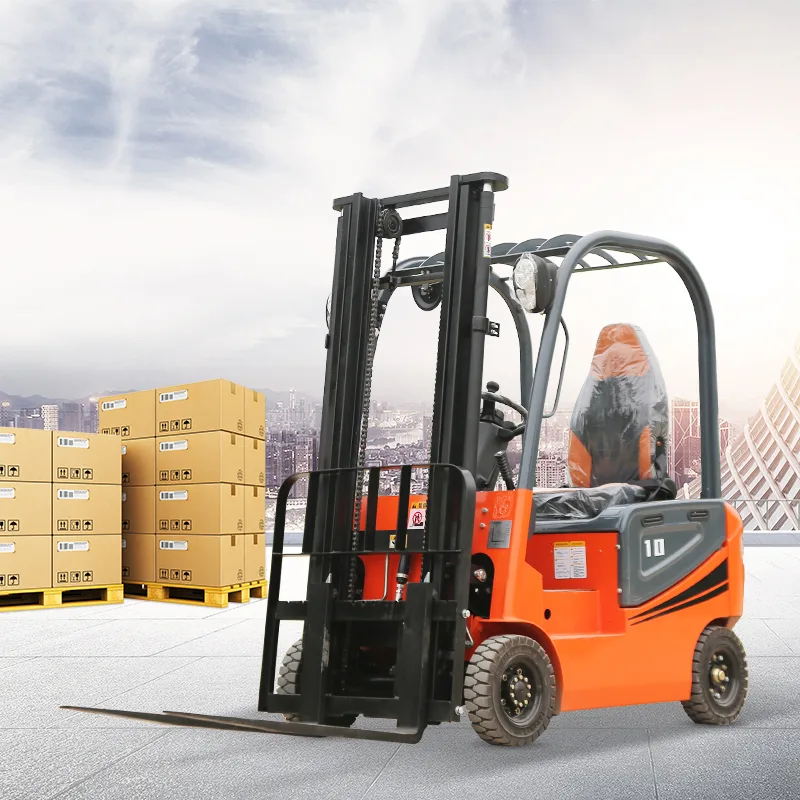

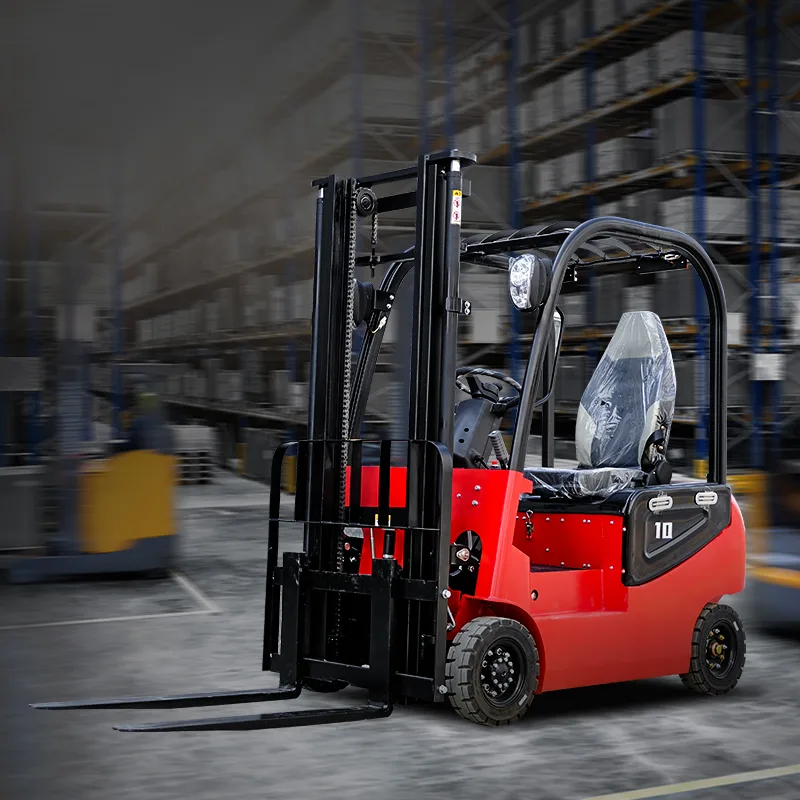

Electric Forklift CPD10
Rated capacity
1000kg
overall maximum lift height
3000mm
Power mode
lead-acid battery
China high quality one tonne small electric forklift truck, factory direct sale can enjoy customised wholesale price
| Model | CPD10 | lateral Fork Adjustment(Outside of Forks)Max/Min | 970/200mm |
| Driving mode | seated | fork size(LxWxT) | 30*100*1070mm |
| Rated capacity | 1000kg | truck body length(fork excluded) | 1980mm |
| Load center distance | 500mm | truck body width | 1020mm |
| Power mode | lead-acid batte | turning radius | 2050mm |
| wheelbase | 1330mm | groubd clearance under mast | 77mm |
| Service mass(with battery) | 1570kg | Travel speed,laden/unladen | 10/11km/h |
| front overhang | 308mm | Lifting speed,laden/unladen | 220/230mm/s |
| Tilt of the mast,front/rear | 5/10° | Lowering speed,laden/unladen | 550mm/s |
| height,mast retraction | 2017mm | Maximum negoniable gradient,laden/unladen | 15/20% |
| overall maximum lift height | 3000mm | drive motor power-60 minutes | 5kW |
| height,mast extended | 3957mm | Control mode of lifting motor/drive motor | MOSFET/PMSM |
| overhead guard height | 1847mm | service brake/parking brake | Hydraulic/Mechanial |
